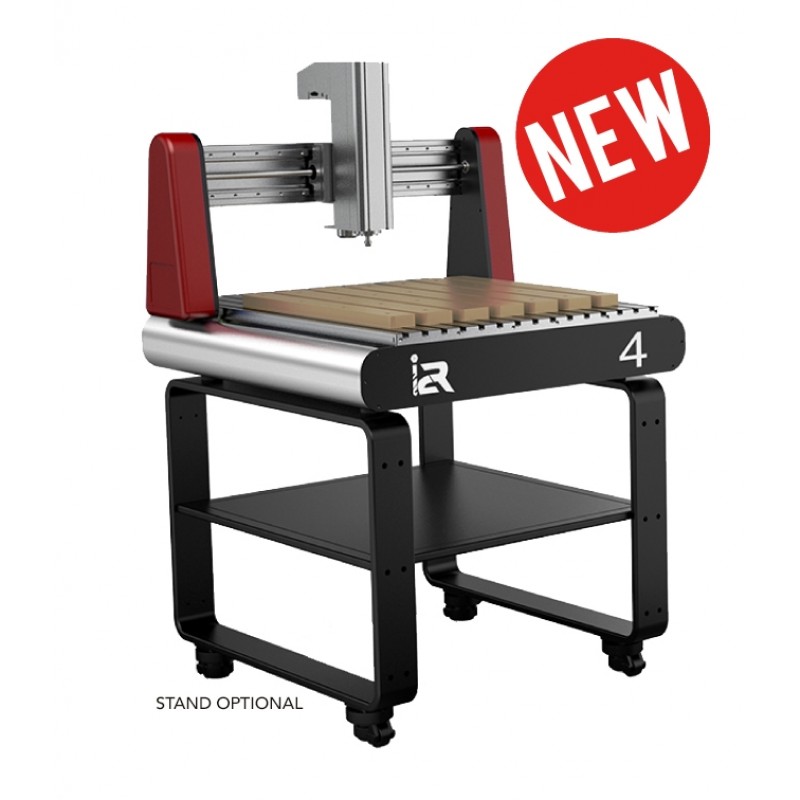

Rarely does the least expensive solution possess best-in-class features…That changes with the launch of Axiom’s new i2R CNC machining center. The best technology and components have been selected to build what will surely be the new king of the entry-level CNC market.
The new i2R CNC series includes three sizes, each with prismatic guides, ball screws, and the same powerful, yet easy to use, DSP pendant controller which we utilize on our larger machines. We also provide a full complement of accessories ensuring that you’ll receive a package that’s specifically tailored to your CNC needs.
Targeted specifically at the first-time CNC user, the new i2R lineup will be supported with a comprehensive manual and video library which are intended to dramatically shorten a new user's learning curve.
These machines ship directly to your shop for $199. (Residential & lift-gate delivery services included!)
| X axis travel | 24" (610mm) |
| Y axis travel | i2R-4 = 24" (610mm) i2R-6 = 36" (915mm) i2R-8 = 48" (1220mm) |
| Z axis travel | 3.937" (100mm) |
| Table work area | i2R-4 = 28.4" x 37" i2R-6 = 28.4" x 49" i2R-8 = 28.4" x 61" |
| Electro Spindle | 800W (1HP) |
| Spindle speed | 0-24,000 RPM |
| Rapid feed rate | 150 IPM (3.81 MPM) |
| Precision Linear Guideway | X/Y/Z |
| Precision Ball Screw | X/Y/Z |
| Ball Screw Diameter | 16mm |
| Positional Accuracy | +/- .00589" (0.15mm) |
| Power requirements | 115V, 50~60Hz, 13A, 1-Phase |
| Working Table | High rigidity Aluminum Extrusion |
| Gantry bridge | High rigidity Aluminum Extrusion |
| Gantry Supports | Aluminum billet machined |
| Gantry Clearance | 4 1/2" (114.0mm) |
| Machine Base | All Welded Steel Frame |
| Machine Dimensions | i2R-4 = 38"L x 35"W x 28"H i2R-6 = 50"L x 35"W x 28"H i2R-8 = 62"L x 35"W x 28"H |
| Shipping Dimensions | i2R-4 = 40" x 37" x 15" i2R-6 = 52" x 37" x 15" i2R-8 = 64" x 37" x 15" |
| Machine Weight | i2R-4 = 176 lbs i2R-6 = 209 lbs i2R-8 = 242 lbs |
| Tool Touch Off | Included |
| Controller | •Richauto B11 DSP CNC motion control system •USB port for easy file transfer. (NO PC REQUIRED) |
| Product Manual | Coming soon |
| Product Manual | View Product Manual |
