Details

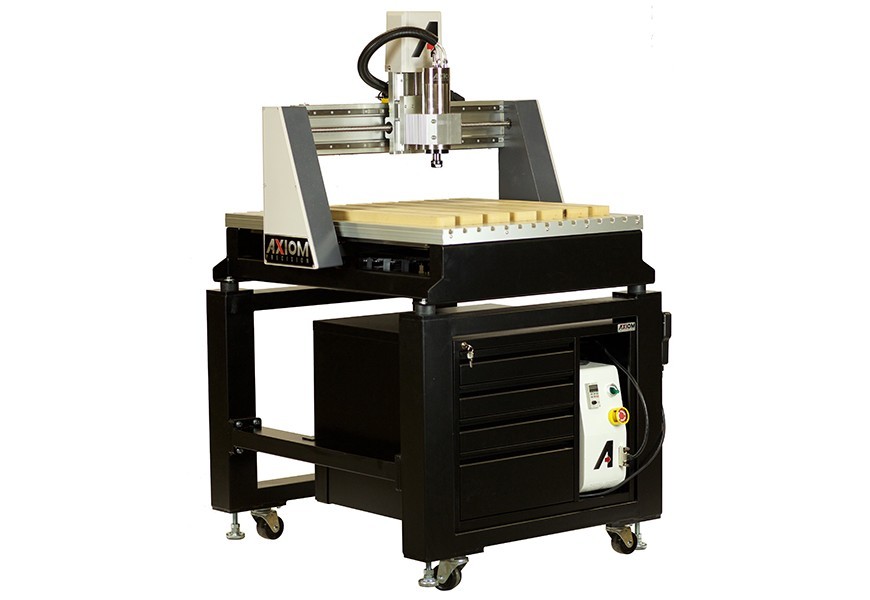

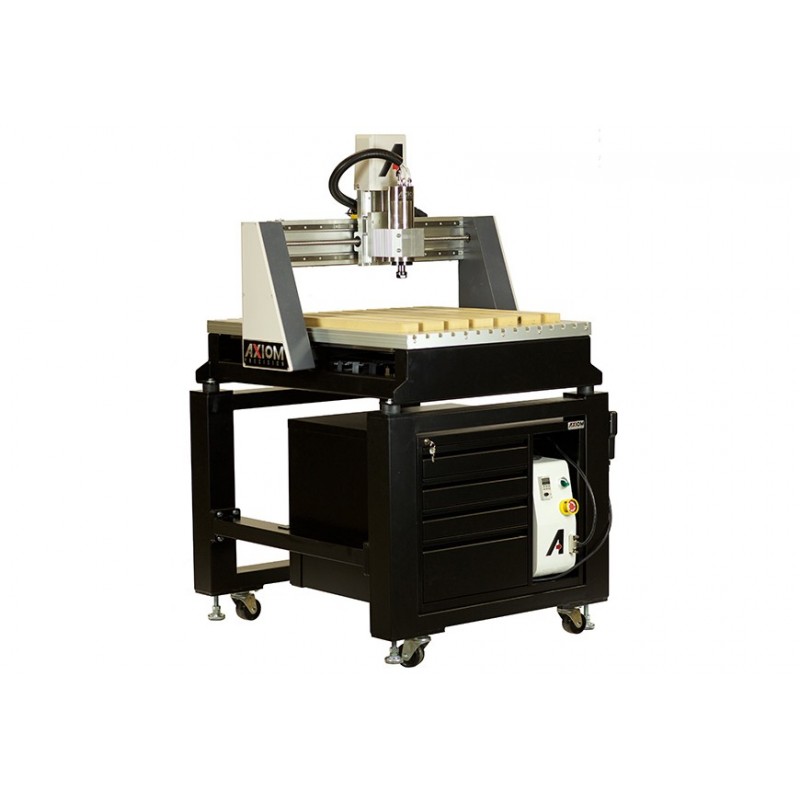

The Axiom Precision AutoRoute Pro+ Series of CNC routers offers all of the great features of our Pro Series machines, but adds 4th-axis capability. Powerful electro spindle performance, and rotary machining capability in a compact industrial machine. Our Pro+ Series CNC routers have a full 6'' Z travel capacity, and a quiet yet powerful 3HP electro-spindle with integrated liquid cooling system. Each Pro+ machine is prewired to accept our optional Rotary Kit. The Axiom Autoroute Pro+ Series CNC routers also offer precision ball screws, prismatic guides, a robust steel frame, and interlocking aluminum table. In addition, the integrated MDF spoil boards promise you the all precision you need, since they can easily be milled flat for a true perpendicular surface to the spindle.
Choose from three footprint options, 24” x 24”, 24” x 36” and 24” x 48”. There is no need to attach your CNC router to your computer to operate it. Simply transfer your file to the handheld controller via USB storage device. The handheld RichAuto controller is a powerful, lightweight and easy to use controller with nearly a decade of proven results in demanding applications.
These machines ship directly to your shop for $199. (Residential & lift-gate delivery services included!)
| X axis travel | 24" (610mm) |
| Y axis travel | AR4 = 24" (610mm) AR6 = 36" (910mm) AR8 = 48" (1210mm) |
| Z axis travel | 6" (153mm) |
| C axis travel | 360deg |
| Table work area | AR4 = 28.4" x 39" AR6 = 28.4" x 51" AR8 = 28.4" x 63" |
| Spindle Configuration | ER20 |
| Included Collets | 1/4" & 1/2" |
| Electro Spindle | 2.2KW |
| Spindle speed | 0~24000 RPM |
| Rapid feed rate | 200 IPM (5 MPM) |
| Precision Linear Guideway | X/Y/Z |
| Precision Ball Screw | X/Y/Z |
| Ball Screw Diameter | 16mm |
| Positional Accuracy | +/- .00393" (0.10mm) |
| Power requirements | 220 V,50~60 Hz, 10A, 1-Phase |
| Working Table | High rigidity Aluminum Extrusion |
| Gantry bridge | High rigidity Aluminum Extrusion |
| Gantry Supports | Aluminum alloy gravity cast |
| Gantry Clearance | 6.5" (165.1mm) |
| Machine Base | All Welded Steel |
| Frame Machine Dimensions | AR4 = 39.17"L x 37.36"W x 30.27"H AR6 = 51.18"L x 37.36"W x 30.27"H AR8 = 62.99"L x 37.36"W x 30.27"H |
| Shipping Dimensions | AR4 = 42"L x 39"W x 33"H AR6 = 53"L x 39"W x 33"H AR8 = 65"L x 39"W x 33"H |
| Shipping Weight | AR4 = 320 lbs AR6 = 360 lbs AR8 = 405 lbs |
| Tool Touch-Off Device | Included |
| Onboard Cooling System | Included |
| Controller | •Richauto B18 DSP 4-Axis Controller •CNC motion control system • USB port for easy file transfer. |
| Language | Support English / Chinese |
| Product Manual | View Product Manual |
Customer Reviews
- Never looked back Review by Tyler
-
After extensive research and excruciating decision making I purchased the AR8 Pro+. I was originally going to buy the AR6 Pro+ but decided to spend the extra amount to get the larger bed. After over two years of learning and using it I can honestly say I have no regrets. The machine is still going strong (with appropriate lubrication and maintenance) and the team at Axiom helped me through a few situations and were really helpful. The quality of the machine is amazing, and the accuracy is great. The only limit to my projects is my own knowledge, I would highly recommend this machine! (Posted on 10/19/2019)Rating - Best sub 10k machine out there Review by Trevor
-
I looked all over and I am convinced that the AR Pro + machines are the best out there in the sub 10k world. Don't be fooled by other machines that cost nearly as much but lack much of the rigidity and features of this one. True linear rails on ALL 3 axis, ball screws everywhere, and metal where it needs to be lead to a stout and smooth machine while in operation. The spindle is great, it is so quiet that if it isn't actually cutting (when the end mill is making noise) it is tough to tell if it is even running. The spindle is smooth at all speeds and easy to adjust. Coming from a Mach 3 based router the controller took a bit of adjustment, but now I really appreciate it's simplicity, and after a year of use it has never once locked up, crashed, or done anything goofy. I have ran hundreds of programs and it does exactly what I have asked of it each and every time. I would buy this thing in a minute and that is the highest recommendation I can give any tool! (Posted on 4/3/2018)Rating - Very inpressed on the quality - loving it Review by Brent
-
It's been a Great investment, I would recommend is product to any one, I was very impressed of the manufacturing of the machine when it was delivered and the simplicity of operation . I give a 10 thumbs up (Posted on 3/12/2018)Rating - Awesome quality Review by Christopher
-
I looked and looked at a wide range of CNC's and I finally decided on Axiom based on talking to other owners. I can say after a few weeks with my AR8 Pro+ I am very happy with my decision. This is a high quality well built piece of equipment. If I find a need to expand my shop and need another CNC I will defiantly look at Axiom first. One of the features I love is that you don't need to run it off a PC. After having Windows mess up stuff in the past because it dose whatever it wants I like that I don't have to worry about it with this CNC. (Posted on 2/4/2018)Rating - Fantastic machine Review by Benjamin
-
I have been playing with my pro 8 for a few months now. It is way better then I expected or hoped for. I did my research before making this purchase. I don't think that I could have gotten more for less. Just don't forget your dust shoe, I did not get one originally and my wife has been on me about it. It is now ordered. (Posted on 12/9/2017)Rating - Fantastic machine Review by Benjamin
-
I have been playing with my pro 8 for a few months now. It is way better then I expected or hoped for. I did my research before making this purchase. I don't think that I could have gotten more for less. Just don't forget your dust shoe, I did not get one originally and my wife has been on me about it. It is now ordered. (Posted on 12/9/2017)Rating - Bought it - Love it Review by Doug
-
I have been programming and running CNC overhead routers since 1993. After retiring, I missed the creativity that this afforded me so I bought another brand of CNC router and added it to my stable. What a disappointment. I put it in my truck and drove to the sellers front door and gave it back demanding a full refund. Not wanting to give up I continued to research CNC routers and came across Axiom. After more research I bought mine.Rating
Upon it's arrival I immediately realized it had some serious weight which let me know that this equipment was not cheaply built. After the minor assembly I was ready to try it out. Wow. It performed great and still is. As I have a small business, I added CNC machining to my services and the Axiom has performed flawlessly and continuously. There are times it runs for 12 to 14 hours straight and never skips a beat. I have not had the need to contact support from the beginning through the months to now.
Thank you Axiom for restoring my faith in American machinery. It's a great product, reliable, well built and of the highest quality. Great engineering. My only regret is that I did not buy a larger model... yet. (Posted on 10/18/2017) - Buying this machine today. Review by jay
-
I looked at a lot of CNC machines over the last 4 months. I picked this one because of the quality. (Posted on 9/25/2017)Rating
